TCL Extreme Series

  • Ai Inverter Algorithm
  • Cooper Tubing
  • Extreme Performance
  • Gen Mode
  • Self Diagnosis
  • Fast Cooling & Heating
PKR 144,900.00

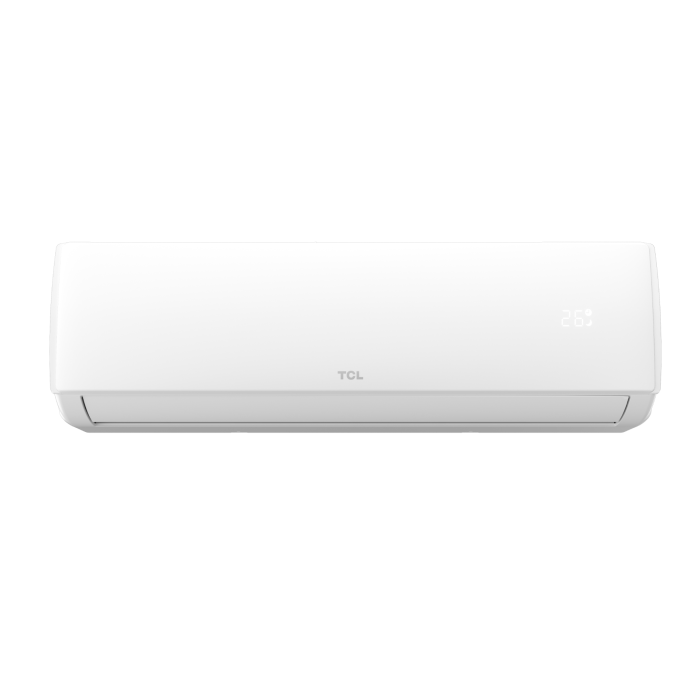

main product photo
Technical Specifications

General Parameters

  • Fixed or Inverter
    Inverter
  • Cooling Capacity BTU
    19000
  • Heating Capacity BTU
    20000
  • Power Input(W)-Cooling
    300~2500
  • Power Input(W)-Heating
    300~2500
  • Running Current(A)-Cooling
    1.4~12
  • Running Current(A)-Heating
    1.4~12
  • EER (w/w)
    3.20

Main Parts

  • Refrigerant
    R410a

Net Dimension and Weight

  • Indoor Net Weight(kg)
    9/12
  • Outdoor Net Weight(kg):
    28/34 (With Pipe)

Electrical Data

  • Rated Voltage
    155~265
  • Rated Frequency
    1Ph-220-240V~50Hz

Healthy Features

  • Filter Clearning Reminder
    Yes
  • Leakage Detection
    Yes

Noise

  • Indoor Noise[dB(A)]
    48
  • Outdoor Noise[dB(A)]
    56

Warranty

  • Parts
    1 Year Part + 4 Year PCB
  • Compressor
    10 Year Compressor
More Information
More Information
Fixed or Inverter Inverter
Cooling Capacity BTU 19000
Heating Capacity BTU 20000
Power Input(W)-Cooling 300~2500
Power Input(W)-Heating 300~2500
Running Current(A)-Cooling 1.4~12
Running Current(A)-Heating 1.4~12
EER (w/w) 3.20
Refrigerant R410a
Indoor Net Weight(kg) 9/12
Outdoor Net Weight(kg): 28/34 (With Pipe)
Rated Voltage 155~265
Rated Frequency 1Ph-220-240V~50Hz
Filter Clearning Reminder Yes
Leakage Detection Yes
Indoor Noise[dB(A)] 48
Outdoor Noise[dB(A)] 56
Parts 1 Year Part + 4 Year PCB
Compressor 10 Year Compressor
